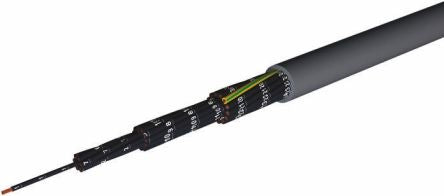

CAE Groupe 3 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1 mm² CSA Flame Retardant [1030100T5000]; 529-475
by CAE Groupe
0₫
Mã kho: 529475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 3 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Length | 50m |
Outer Diameter | 5.9mm |
Screen Type | Unscreened |
Voltage Rating | 300/500 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 16 AWG |
Cable Shape | Multicore |
Earth Cable | Yes |
Insulation Material | PVC |
Sheath Colour | Grey |
Maximum Operating Temperature | +80°C |
Conductor Resistance | 19.5 Ω/km |
Fire Behaviour | Flame Retardant |
Minimum Operating Temperature | -40°C |
Minimum Bend Radius | 10 x D |
Conductor Material | Copper |
Size of Strands | 0.21 mm |
Series | CAELIFLEX |
