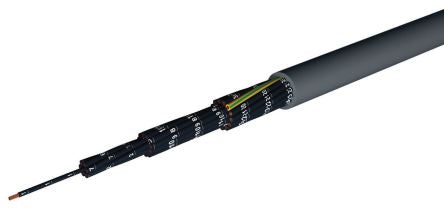

CAE Groupe 2 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 0.75 mm² CSA Flame Retardant [1020075C50]; 530-053
by CAE Groupe
0₫
Mã kho: 530053
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Outer Diameter | 5.2mm |
| Screen Type | Unscreened |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 18 AWG |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Copper |
| Minimum Bend Radius | 10 x D |
| Standards Met | Euroclass Eca |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Flame Retardant |
| Size of Strands | 0.21 mm |
| Conductor Resistance | 26 Ω/km |
| Series | CAELIFLEX |
