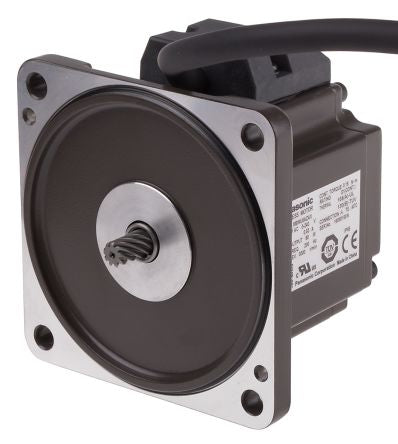

Panasonic GV Anti Clockwise, Clockwise Brushless AC Motor, 50 W, 1, 3 Phase, 8 Pole, 100 V, 200 V [MBMU5AZAX]; 127-0238
by Panasonic
0₫
Mã kho: 1270238
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 50 W |
| AC Motor Type | Brushless |
| Supply Voltage | 100 V, 200 V |
| Phase | 1, 3 |
| Output Speed | 3000 rpm |
| Number of Poles | 8 |
| Shaft Diameter | 8mm |
| Shaft Length | 30mm |
| Length | 80mm |
| Width | 59.5mm |
| Depth | 80mm |
| Dimensions | 80 x 59.5 x 80 mm |
| Rotation | Anti Clockwise, Clockwise |
| Current Rating | 530 mA |
| Series | GV |
| Maximum Output Torque | 0.16 Nm |
| Standards Met | UL |
