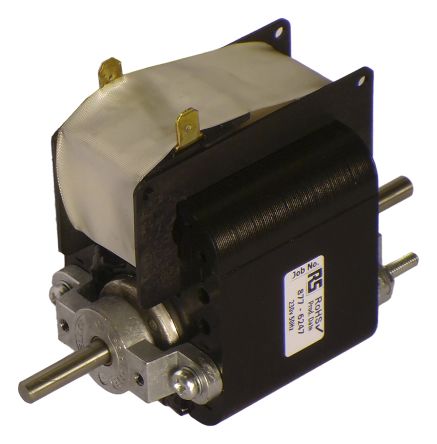

Mellor Electric AC Anti Clockwise Shaded Pole AC Motor, 40 W, 230 V, Surface Mount Mounting [AC1116]; 877-6247
0₫
Mã kho: 8776247
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 40 W |
| Frequency Rating | 50Hz |
| AC Motor Type | Shaded Pole |
| Supply Voltage | 230 V |
| Output Speed | 2850 rpm |
| Mounting Type | Surface Mount |
| Shaft Diameter | 6mm |
| Shaft Length | 24.75mm |
| Length | 61.2mm |
| Width | 127.5mm |
| Depth | 87.5mm |
| Dimensions | 61.2 x 127.5 x 87.5 mm |
| Series | AC |
| Standards Met | RoHS Compliant |
| Rotation | Anti Clockwise |
| Current Rating | 310 mA |
| Maximum Output Torque | 0.029 Nm |
