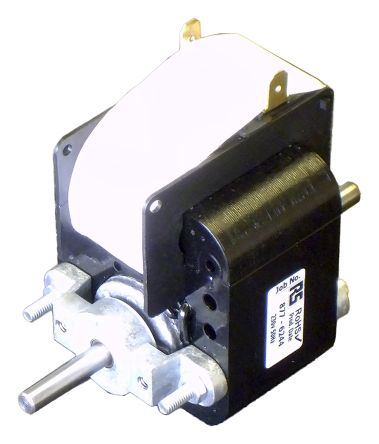

Mellor Electric AC Anti Clockwise Shaded Pole AC Motor, 26 W, 230 V, Surface Mount Mounting [AC1115]; 877-6244
0₫
Mã kho: 8776244
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Rating | 26 W |
Frequency Rating | 50Hz |
AC Motor Type | Shaded Pole |
Supply Voltage | 230 V |
Output Speed | 2850 rpm |
Mounting Type | Surface Mount |
Shaft Diameter | 6mm |
Shaft Length | 24.75mm |
Length | 61.2mm |
Width | 114.5mm |
Depth | 87.5mm |
Dimensions | 61.2 x 114.5 x 87.5 mm |
Series | AC |
Current Rating | 250 mA |
Standards Met | RoHS Compliant |
Rotation | Anti Clockwise |
Maximum Output Torque | 0.025 Nm |
