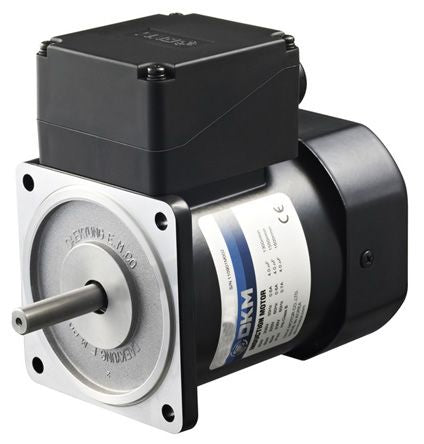

DKM Reversible Induction AC Motor, 90 W, 1 Phase, 4 Pole, 220 V, 240 V [9IDGE-90FP-T]; 103-3957
by DKM
0₫
Mã kho: 1033957
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 90 W |
| Frequency Rating | 50Hz |
| AC Motor Type | Induction |
| Supply Voltage | 220 V, 240 V |
| Phase | 1 |
| Output Speed | 1300 rpm |
| Number of Poles | 4 |
| Shaft Diameter | 15mm |
| Shaft Length | 31mm |
| Length | 90mm |
| Width | 90mm |
| Depth | 213mm |
| Dimensions | 90 x 90 x 213 mm |
| Standards Met | JIS C4003 (IEC 60085) |
| Current Rating | 700 mA @ 220 V, 760 mA @ 240 V |
| Rotation | Reversible |
| Bearing Type | Ball |
| Maximum Output Torque | 0.86 Nm |
