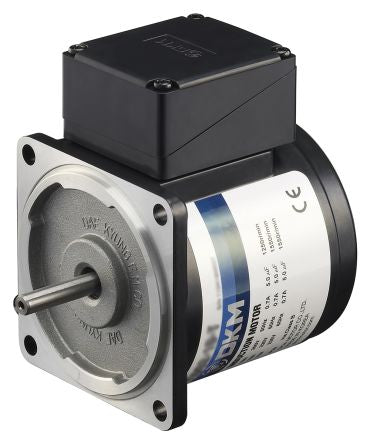

DKM Reversible Induction AC Motor, 25 W, 3 Phase, 4 Pole, 220 V [8IDGG-25G-T]; 103-3975
by DKM
0₫
Mã kho: 1033975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Rating | 25 W |
AC Motor Type | Induction |
Supply Voltage | 220 V |
Phase | 3 |
Output Speed | 1300 (50 Hz) rpm, 1600 (60 Hz) rpm |
Number of Poles | 4 |
Shaft Diameter | 10mm |
Shaft Length | 29mm |
Length | 81mm |
Width | 81mm |
Depth | 123mm |
Dimensions | 81 x 81 x 123 mm |
Current Rating | 250 mA @ 60 Hz, 320 mA @ 50 Hz |
Standards Met | JIS C4003 (IEC 60085) |
Bearing Type | Ball |
Rotation | Reversible |
Maximum Output Torque | 0.2 Nm |
