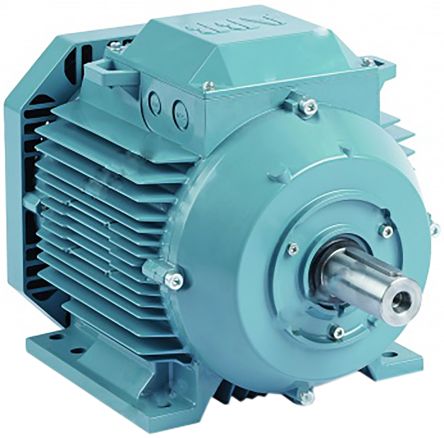

ABB M3AA Induction AC Motor, 7.5 kW, IE3, 3 Phase, 4 Pole, Flange Mount Mounting [3GAA132614-BDJ]; 123-8196
by ABB
0₫
Mã kho: 1238196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 7.5 kW |
| Efficiency Class | IE3 |
| AC Motor Type | Induction |
| Phase | 3 |
| Output Speed | 1462 rpm |
| Number of Poles | 4 |
| Mounting Type | Flange Mount |
| Shaft Diameter | 41mm |
| Shaft Length | 80mm |
| Length | 261mm |
| Width | 537mm |
| Depth | 295.5mm |
| Dimensions | 261 x 517 x 295.5 mm |
| Series | M3AA |
| Bearing Type | Ball |
| Standards Met | IEC 60034-30-1 |
| Maximum Output Torque | 48.9 Nm |
| Current Rating | 15.6 A |
