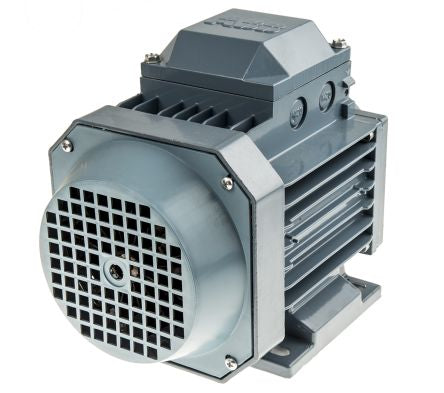

ABB Squirrel Cage Motor AC Motor, 7.5 kW, IE3, 3 Phase, 4 Pole, 400 V, 415 V, 690 V, Flange Mount Mounting [3GAA132310-BDJ]; 172-0128
by ABB
0₫
Mã kho: 1720128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 7.5 kW |
| Efficiency Class | IE3 |
| Frequency Rating | 50Hz |
| AC Motor Type | Squirrel Cage Motor |
| Supply Voltage | 400 V, 415 V, 690 V |
| Phase | 3 |
| Output Speed | 1462 rpm, 1464 rpm |
| Number of Poles | 4 |
| Mounting Type | Flange Mount |
| Bearing Type | Deep Groove |
| Current Rating | 9 A, 15.6 A |
| Maximum Output Torque | 48.8 Nm, 48.9 Nm |
