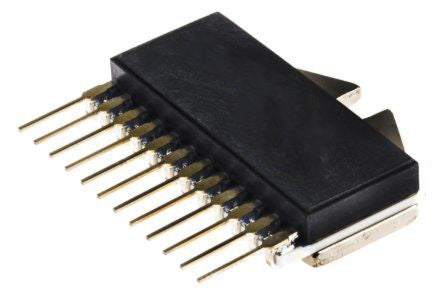

ROHM BP5039B12, AC-DC Converter 300mA, 11 → 13 V 12-Pin, SIP [BP5039B12]; 167-7616
by ROHM
0₫
Mã kho: 1677616
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | SIP |
| Pin Count | 12 |
| Current Limit | 400mA |
| Dimensions | 35 x 9.1 x 19.5mm |
| Length | 35mm |
| Width | 9.1mm |
| Height | 19.5mm |
| Maximum Input Voltage | 170 V |
| Maximum Operating Temperature | +80 °C |
| Maximum Output Current | 300mA |
| Maximum Output Voltage | 13 V |
| Minimum Input Voltage | 113 V |
| Minimum Operating Temperature | -25 °C |
| Output Voltage Range | 11 → 13 V |
| Minimum Output Current | 0mA |
| Minimum Output Voltage | 11 V |
| Operating Temperature Range | -25 → +80 °C |
| Output Current Range | 0 → 300 mA |
| Input Voltage Range | 113 → 170 V |
