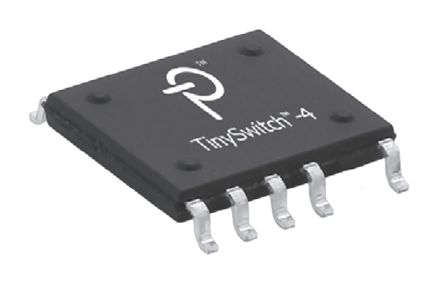

Power Integrations TNY290KG, AC-DC Converter, Minimum of 50 V dc 11-Pin, eSOP-12B [TNY290KG]; 146-2512
0₫
Mã kho: 1462512
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Surface Mount |
Package Type | ESOP-12B |
Pin Count | 11 |
Current Limit | 802mA |
Dimensions | 10.16 x 8.89 x 2.34mm |
Length | 10.16mm |
Width | 8.89mm |
Height | 2.34mm |
Maximum Input Voltage | 265 V ac |
Maximum Operating Temperature | +150 °C |
Maximum Output Current | 2.55A |
Minimum Input Voltage | 85 V ac |
Minimum Operating Temperature | -40 °C |
Typical Operating Supply Voltage | 230 V ac |
Minimum Output Voltage | 50 V dc |
Output Voltage Range | Minimum of 50 V dc |
Operating Temperature Range | -40 → +150 °C |
Output Current Range | Maximum of 2550 mA |
Input Voltage Range | 85 → 265 V ac |
