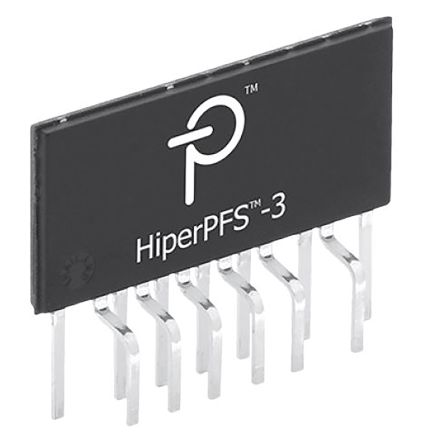

Power Integrations PFS7525H, AC-DC Converter, 385 V dc 13-Pin, eSIP-16D [PFS7525H]; 146-2489
0₫
Mã kho: 1462489
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | ESIP-16D |
| Pin Count | 13 |
| Current Limit | 6.2A |
| Dimensions | 16.59 x 2.06 x 8.25mm |
| Length | 16.59mm |
| Width | 2.06mm |
| Height | 8.25mm |
| Maximum Input Voltage | 265 V ac |
| Maximum Operating Temperature | +150 °C |
| Maximum Output Current | 11.3A |
| Maximum Output Voltage | 385 V dc |
| Minimum Input Voltage | 90 V ac |
| Minimum Operating Temperature | -40 °C |
| Operating Temperature Range | -40 → +150 °C |
| Output Current Range | Maximum of 11.3 A |
| Input Voltage Range | 90 → 265 V ac |
| Output Voltage Range | 385 V dc |
| Typical Operating Supply Voltage | 230 V ac |
