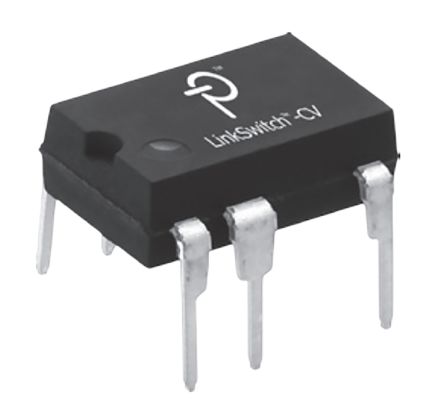

Power Integrations LNK625PG, AC-DC Converter, 5 V dc 7-Pin, DIP [LNK625PG]; 123-5469
0₫
Mã kho: 1235469
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | DIP |
| Pin Count | 7 |
| Current Limit | 353mA |
| Dimensions | 9.83 x 6.6 x 3.68mm |
| Length | 9.83mm |
| Width | 6.6mm |
| Height | 3.68mm |
| Maximum Input Voltage | 265 V ac |
| Maximum Operating Temperature | +150 °C |
| Maximum Output Current | 1.2A |
| Maximum Output Voltage | 5 V dc |
| Minimum Input Voltage | 85 V ac |
| Minimum Operating Temperature | -40 °C |
| Typical Operating Supply Voltage | 230 V ac |
| Output Voltage Range | 5 V dc |
| Input Voltage Range | 85 → 265 V ac |
| Operating Temperature Range | -40 → +150 °C |
| Output Current Range | Maximum of 1.2 A |
