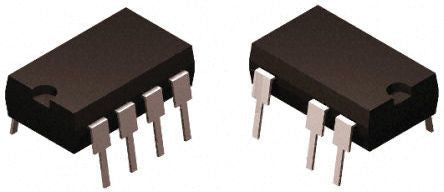

![ON Semiconductor NCP1079AAP100G 1412977](http://nguyenxuong.com/cdn/shop/products/R1412977-01_444x192.jpg?v=1594098854)
ON Semiconductor NCP1079AAP100G, Off-Line Regulator 7-Pin, PDIP [NCP1079AAP100G]; 141-2977
0₫
Mã kho: 1412977
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 7 |
Dimensions | 10.16 x 7.11 x 4.95mm |
Length | 10.16mm |
Width | 7.11mm |
Height | 4.95mm |
Maximum Input Voltage | 10 V |
Maximum Operating Temperature | +150 °C |
Maximum Output Current | 1.05A |
Minimum Input Voltage | -0.3 V |
Input Voltage Range | -0.3 → 10 V |
Output Current Range | 1050 mA |
Operating Temperature Range | Maximum of +150 °C |
