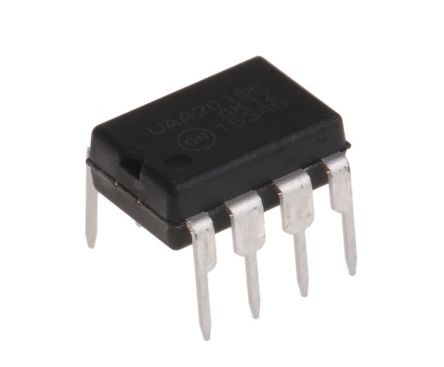

ON Semiconductor UAA2016PG AC/DC Driver, Zero Voltage Switching Controllers 8-Pin, PDIP [UAA2016PG]; 124-5438
0₫
Mã kho: 1245438
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Controller Type | Zero Voltage Switching Controllers |
Number of Outputs | 1 |
Width | 6.6mm |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 8 |
Dimensions | 10.16 x 6.6 x 3.44mm |
Length | 10.16mm |
Height | 3.44mm |
Maximum Input Voltage | -8 V |
Maximum Operating Temperature | +85 °C |
Maximum Output Current | 150mA |
Maximum Output Voltage | -4.5 V |
Minimum Input Voltage | -10 V |
Output Voltage Range | -6.5 → -4.5 V |
Input Voltage Range | -10 → -8 V |
Minimum Output Voltage | -6.5 V |
Operating Temperature Range | -20 → +85 °C |
Minimum Operating Temperature | -20 °C |
