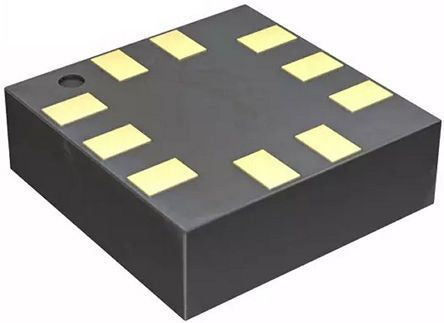

LPS22HBTR, Mems Pressure Sensor, 126kPa 5.7 → 6.7 Vdc Output, 10-Pin HLGA [LPS22HBTR]; 166-1075
0₫
Mã kho: 1661075
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Overload Pressure | 2000kPa |
Mounting Type | Surface Mount |
Package Type | HLGA |
Pin Count | 10 |
Dimensions | 2 x 2 x 0.8mm |
Length | 2mm |
Width | 2mm |
Height | 0.8mm |
Maximum Operating Pressure | 126kPa |
Maximum Operating Supply Voltage | 3.6 V |
Maximum Operating Temperature | +85 °C |
Maximum Output Voltage | 6.7 Vdc |
Minimum Operating Pressure | 26kPa |
Minimum Output Voltage | 5.7 Vdc |
Operating Pressure Range | 260 → 1260 hPa |
Operating Supply Voltage Range | 1.7 → 3.6 V |
Minimum Operating Temperature | -40 °C |
Output Voltage Range | 5.7 → 6.7 Vdc |
Operating Temperature Range | -40 → +85 °C |
Minimum Operating Supply Voltage | 1.7 V |
