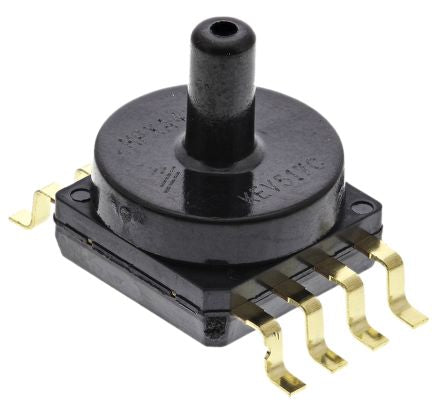

MPXA4250AC6U, Absolute Pressure Sensor, 250kPa 0.2 V → 4.9 V Output, 8-Pin [MPXA4250AC6U]; 719-1131
by NXP
0₫
Mã kho: 7191131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Overload Pressure | 1000kPa |
| Typical Sensitivity | 20mV/kPa |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Operating Pressure | 250kPa |
| Maximum Operating Supply Voltage | 5.35 V |
| Maximum Operating Temperature | +125 °C |
| Maximum Output Voltage | 4.9 V |
| Minimum Operating Pressure | 20kPa |
| Minimum Operating Temperature | -40 °C |
| Operating Temperature Range | -40 → +125 °C |
| Operating Pressure Range | 20 → 250 kPa |
| Minimum Output Voltage | 0.2 V |
| Output Voltage Range | 0.2 V → 4.9 V |
| Operating Supply Voltage Range | 4.85 → 5.35 V |
