The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7

Name: The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7
Brand: Panduit
SKU: PAK884
Price: 5500.0 VND
Availability: InStock

by Panduit

5.500₫

(Giá chưa VAT).

Mã kho: PAK884

Mã nhà sản xuất: DNFR18-250FIB-M

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

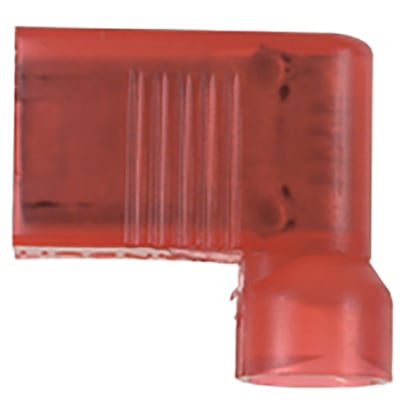

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNFR18-250FIB-M

MÔ TẢ SẢN PHẨM

The DNFR18-250FIB-M Pan-Term™ Disconnect is a fully insulated, right angle female disconnect with a funnel entry. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength. Funnel entry design

_THÔNG SỐ KỸ THUẬT:

Disconnect Type	Female Disconnect-Right Angle
Insulation Material	Nylon
Insulation Type	Fully Insulated
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Wire Strip Length (In.)	11/32
Wire Strip Length (mm)	8.7
Tab Size (In.)	0.250 x 0.032
Tab Size (mm)	6.3 x 0.8
Standards Met	UL 310, CSA 22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tin-Plated
Color Code	Red
Barrel Type	Funnel
Flammability Rating	UL94-HB
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Sub Brand	Pan-Term®
Maximum Metric Conductor Size (mm²)	1
Minimum Metric Conductor Size (mm²)	0.5
Maximum Wire Insulation Diameter (In.)	0.18
Maximum Wire Insulation Diameter (mm)	4.5
Overall Height (In.)	0.21
Overall Height (mm)	5.3
Overall Length (In.)	0.6
Overall Length (mm)	15.24
Overall Width (In.)	0.58
Overall Width (mm)	14.73
Tongue Angle	Right Angle
Packaging Type	Box
Product Type	Loose Piece Disconnect
For Use With	CT-300-1
Maximum Voltage (kV)	0.6
Part Features	• Right angle design for use in limited space applications • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310
