Brand:
Panduit
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5
Regular price
12.560 VND
Regular price
Sale price
12.560 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNFR14250FIB-KD
MÔ TẢ SẢN PHẨM

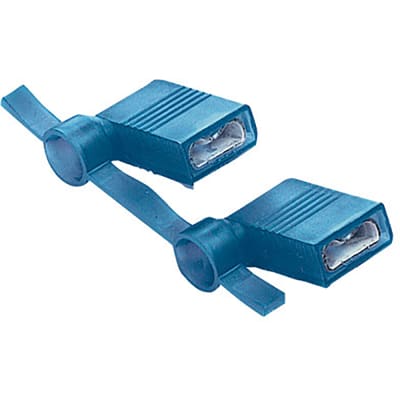

The DNFR14250FIB-KD Reel Smart™ Disconnect is a continuously molded, fully insulated, right angle female disconnect with a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion leng
_THÔNG SỐ KỸ THUẬT:
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart™ |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.18 |
| Maximum Wire Insulation Diameter (mm) | 4.5 |
| Overall Height (In.) | 0.21 |
| Overall Height (mm) | 5.3 |
| Overall Length (In.) | 0.6 |
| Overall Length (mm) | 15.24 |
| Overall Width (In.) | 0.57 |
| Overall Width (mm) | 14.5 |
| Tongue Angle | Right Angle |
| Packaging Type | Reel |
| Product Type | Disconnects on a Reel |
| For Use With | Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Right angle design for use in limited space applications • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
