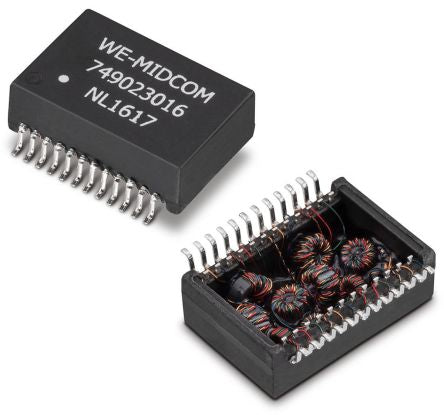

Surface Mount Lan Ethernet Transformer, 18.3 x 12.2mm, 0 → +70 °C [749023016]; 135-3937
0₫
Mã kho: 1353937
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Output Ports | 1 |
| Insertion Loss | -1.2dB |
| Mounting Type | Surface Mount |
| Dimensions | 18.3 x 12.2mm |
| Length | 18.3mm |
| Width | 12.2mm |
| Isolation Voltage | 1500V ac |
| Construction | Enclosed |
| Standards Met | IEEE 802.3 |
| Turns Ratio | 0.0423611111111111 |
| Termination Type | Solder |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
