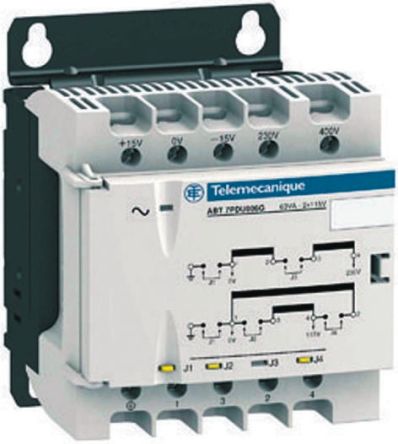

Schneider Electric 25VA Panel Mount Transformer, 215V ac, 230V ac, 245V ac, 385V ac, 400V ac, 415V ac Primary 2 x [ABT7PDU002G]; 482-821
0₫
Mã kho: 482821
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Voltage Rating | 215V ac, 230V ac, 245V ac, 385V ac, 400V ac, 415V ac |
| Secondary Voltage Rating | 115V ac |
| Power Rating | 25VA |
| Mounting Type | Chassis |
| Number of Outputs | 2 |
| Length | 85mm |
| Width | 98mm |
| Depth | 108mm |
| Dimensions | 85 x 98 x 108mm |
| Minimum Operating Frequency | 47Hz |
| Maximum Operating Frequency | 63Hz |
| Minimum Temperature | -20°C |
| Maximum Temperature | +60°C |
| Weight | 1.1kg |
