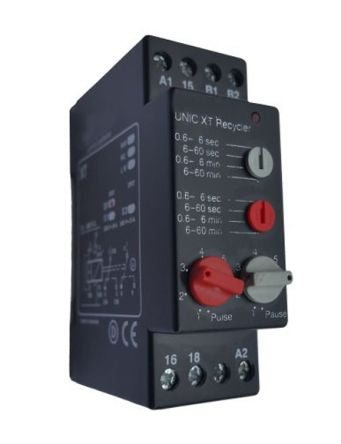

RS PRO Multi Function Time Delay Relay, Screw, 0.6 s → 60 min, 2 Contacts, DPDT, 10.5 → 265 V ac/dc; 161-7608
by RS PRO
0₫
Mã kho: 1617608
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 10.5 → 265 V ac/dc |
| Time Range | 0.6 s → 60 min |
| Mode of Operation | ON Delay, ON Pulse, Symmetrical Recycler with Pause Start, Symmetrical Recycler with Pulse Start |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Current Maximum | 0.208333333333333 |
| Terminal Type | Screw |
| Minimum Voltage | 10.5 V ac/dc |
| Maximum Voltage | 265 V ac/dc |
| Contact Material | Silver Cadmium Oxide |
| Time Delay | 100 ms |
| Switch Configuration | DPDT |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -20°C |
| Length | 27mm |
| Width | 75mm |
| Depth | 63mm |
