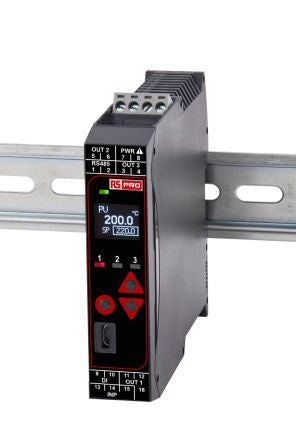

RS PRO DIN Rail PID Temperature Controller, 22.5 x 110mm 3 Input, 2 Output Relay, Relay-CO, 24 V ac/dc Supply Voltage; 144-8677
by RS PRO
0₫
Mã kho: 1448677
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay, Relay-CO |
| Supply Voltage | 24 V ac/dc |
| Size | 22.5 x 110mm |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +55°C |
| Control Type | ON/OFF, PID Controller |
| Display Type | OLED |
| IP Rating | IP20 |
| Termination Type | Screw |
| Panel Depth | 123mm |
| Mounting Type | DIN Rail |
| Display Colour | Black |
| Input Type | DC Current, DC Voltage, RTD, Thermocouple |
