Brand:
Panduit
Panduit Wire Routing, Management & Protection, [IMSP12T35-QR6L]; PAH892
Panduit Wire Routing, Management & Protection, [IMSP12T35-QR6L]; PAH892
Regular price
2.693.420 VND
Regular price
Sale price
2.693.420 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Contractor Products / Stainless Steel / Custom Strapping: Panduit IMSP12T35-QR6L
MÔ TẢ SẢN PHẨM
StrongHold IMSP12T35-QR6L Coated Metal Strapping Coils offer contractors an economical option for mechanical fastening. They provide secure connections while offering a lower installed cost and enhanced productivity. Made of 316L stainless steel and are coated in epoxy polyester. They are 82’ x 0.5”
_THÔNG SỐ KỸ THUẬT:
| Application | Corrosive Environment |
| Product Type | Custom Length Stainless Steel Strapping |
| Color | Black |
| Environment | Indoor and Outdoor |
| Finish/Coating | Polyester Epoxy |
| Material | 316 Stainless Steel |
| Minimum Loop Tensile Strength (N) | 2.445 |
| Minimum Loop Tensile Strength (lb) | 549.65 |
| Overall Length (In.) | 984.24 |
| Overall Length (mm) | 25000 |
| Overall Width (In.) | 0.47 |
| Overall Width (mm) | 12 |
| Resistance Properties | UV-Resistant |
| Standards Met | RoHS Compliant |
| Sub Brand | StrongHold™ |
| Strap Breaking Strength (N) | 2.445 |
| Strap Breaking Strength (lb) | 549.65 |
| Minimum Bundle Width (In.) | 1.02 |
| Minimum Bundle Width (mm) | 26 |
| Overall Thickness (In.) | 0.014 |
| Overall Thickness (mm) | 0.35 |

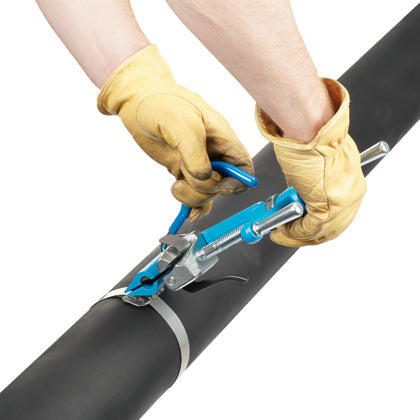

| Part Features | Fold over design provides high-retained tension in mechanical fastening and cable bundling applications; After tensioning, cut end is locked inside low profile buckle – no sharp edges; For applications that require various bundle diameters; Supplied in reels of 82 ft (25 m); Coated with Epoxy Polyester; Provides job site versatility with minimum inventory; Packaging speeds removal of steel and includes bundle diameter cut off guide. |
