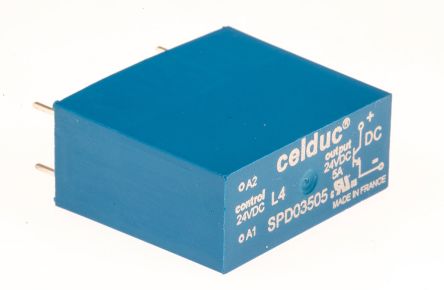

Celduc 5 A SPST Solid State Relay, DC, PCB Mount, MOSFET, 30 V dc Maximum Load [SPD03505]; 776-7680
by Celduc
0₫
Mã kho: 7767680
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 1 mA |
| Maximum Load Current | 0.208333333333333 |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 0 V dc |
| Maximum Load Voltage | 30 V dc |
| Minimum Control Voltage | 12 V dc |
| Maximum Control Voltage | 30 V dc |
| Switching Type | DC |
| Contact Configuration | SPST |
| Terminal Type | Push In |
| Output Device | MOSFET |
| Package Style | Module |
| Dimensions | 29.2 x 12.7 x 25.4mm |
| Operating Temperature Range | -40 → +100°C |
| Off State Leakage Current | <1 mA |
| Load Voltage Range | 0 → 30V dc |
| Height | 25.4mm |
| Length | 29.2mm |
| Control Voltage Range | 12 → 30 V dc |
| Depth | 12.7mm |
