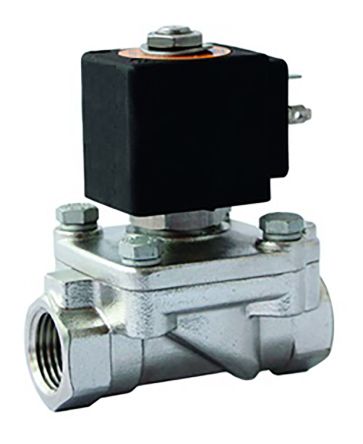

Parker Solenoid Valve 221G6336-2995-481865C2, 2 port , NC, 24 V dc, 3/8in [221G6336-2995-481865C2]; 125-4084
by Parker
0₫
Mã kho: 1254084
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Solenoid |
| Connection | 3/8 in BSP |
| Connection Size | 3/8in |
| Default Valve Position | NC |
| Suitable Applications | Air, Oil, Water |
| Type | 43863 |
| Orifice Diameter | 15mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +100 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +100°C |
| Thread Standard or Connection Type | BSP |
| Flow Factor Kv | 3.9m³/h |
| Hazardous Area Certification | ATEX |
| Connection Gender | Female |
