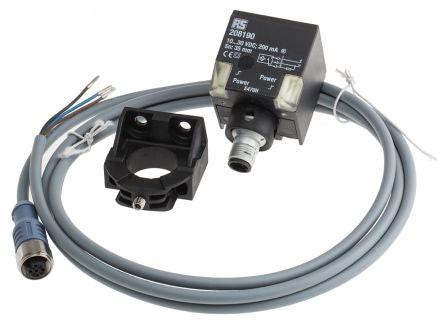

RS PRO PNP-NO Inductive Sensor 65mm Length, 10 → 30 V dc supply voltage , IP68 Rating; 208-190
by RS PRO
0₫
Mã kho: 208190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 35 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | 200 mA |
| IP Rating | IP68 |
| Housing Material | Plastic |
| Minimum Operating Temperature | -30°C |
| Shielding | Partial |
| Maximum Switching Frequency | 250Hz |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +85°C |
