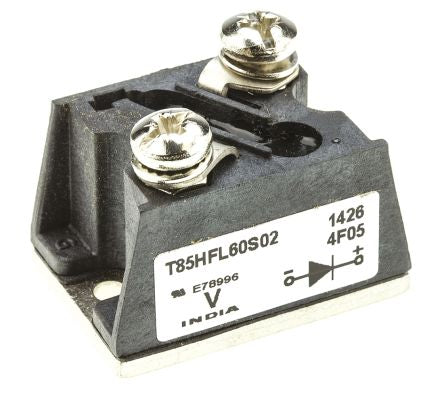

Vishay 600V 85A, Diode, 2-Pin T-Module VS-T85HFL60S02 [VS-T85HFL60S02]; 379-8003
by Vishay
0₫
Mã kho: 3798003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Panel Mount |
| Package Type | T-Module |
| Maximum Continuous Forward Current | 85A |
| Peak Reverse Repetitive Voltage | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.55V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 200ns |
| Peak Non-Repetitive Forward Surge Current | 1.4kA |
