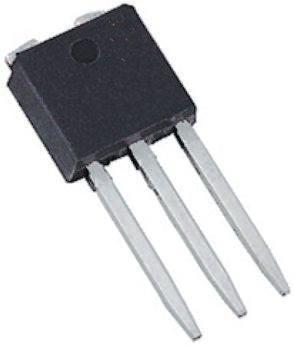

Vishay 600V 15A, Diode, 3-Pin I2PAK (TO-262) VS-ETL1506-1-M3 [VS-ETL1506-1-M3]; 145-1811
by Vishay
0₫
Mã kho: 1451811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | I2PAK (TO-262) |
| Maximum Continuous Forward Current | 15A |
| Peak Reverse Repetitive Voltage | 600V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.07V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 290ns |
| Peak Non-Repetitive Forward Surge Current | 200A |
