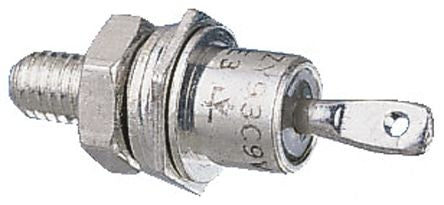

Vishay 1000V 40A, Diode, 2-Pin DO-203AB VS-40HFL100S05 [VS-40HFL100S05]; 165-6233
by Vishay
0₫
Mã kho: 1656233
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | DO-203AB |
| Maximum Continuous Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 1000V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Fast Recovery |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.95V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 500ns |
| Peak Non-Repetitive Forward Surge Current | 500A |
