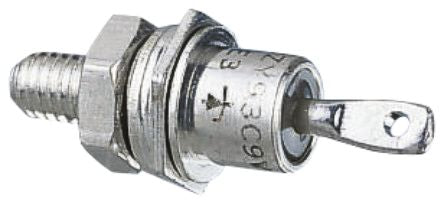

Vishay 200V 12A, Diode, 2-Pin DO-4 VS-1N3891 [VS-1N3891]; 170-8391
by Vishay
0₫
Mã kho: 1708391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | DO-4 |
| Maximum Continuous Forward Current | 12A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Fast Recovery |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.4V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 300ns |
