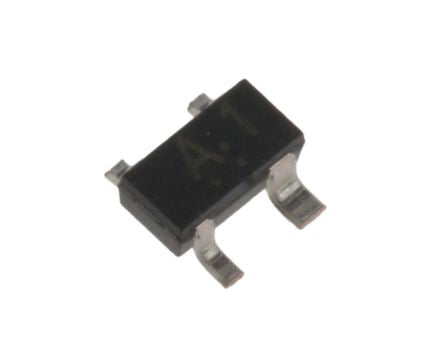

Toshiba 85V 100mA, Dual Diode, 4-Pin SC-61 1SS272(F) [1SS272(F)]; 184-997
by Toshiba
0₫
Mã kho: 184997
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SC-61 |
| Maximum Continuous Forward Current | 100mA |
| Peak Reverse Repetitive Voltage | 85V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 4 |
| Maximum Forward Voltage Drop | 1.2V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 4ns |
| Peak Non-Repetitive Forward Surge Current | 2A |
