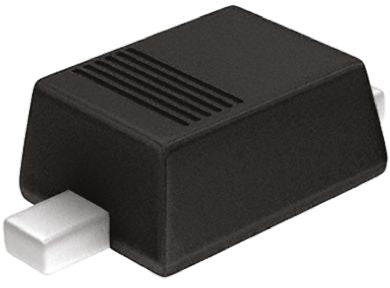

Taiwan Semi 800V 800mA, Diode, 2-Pin Sub SMA RS1KL R3 [RS1KL R3]; 170-4098
0₫
Mã kho: 1704098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | Sub SMA |
| Maximum Continuous Forward Current | 800mA |
| Peak Reverse Repetitive Voltage | 800V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.3V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 500ns |
| Peak Non-Repetitive Forward Surge Current | 30A |
