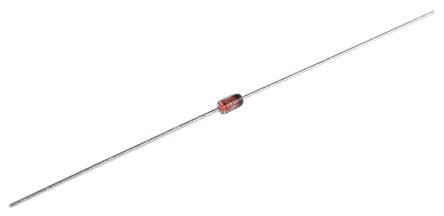

Taiwan Semi 100V 150mA, Diode, 2-Pin DO-35 1N4448 A0 [1N4448 A0]; 169-9010
0₫
Mã kho: 1699010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | DO-35 |
| Maximum Continuous Forward Current | 150mA |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 4ns |
| Peak Non-Repetitive Forward Surge Current | 2A |
| Diameter | 2.28mm |
