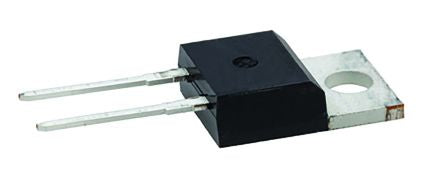

Infineon 1200V 19.1A, Diode, 2+Tab-Pin TO-220 IDH05G120C5XKSA1 [IDH05G120C5XKSA1]; 133-8552
by Infineon
0₫
Mã kho: 1338552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220 |
| Maximum Continuous Forward Current | 19.1A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Single |
| Diode Type | SiC Schottky |
| Pin Count | 2 + Tab |
| Maximum Forward Voltage Drop | 2.6V |
| Number of Elements per Chip | 1 |
| Diode Technology | SiC Schottky |
| Peak Non-Repetitive Forward Surge Current | 59A |
