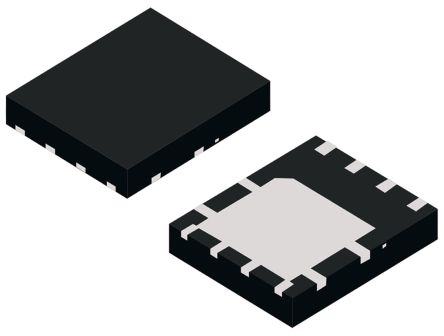

Diodes Inc 50V 20A, Diode, 8-Pin PowerDI 5060 SBR20U50SLP-13 [SBR20U50SLP-13]; 165-8451
by DiodesZetex
0₫
Mã kho: 1658451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | PowerDI 5060 |
| Maximum Continuous Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 50V |
| Diode Configuration | Single |
| Pin Count | 8 |
| Maximum Forward Voltage Drop | 520mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 57ns |
| Peak Non-Repetitive Forward Surge Current | 100A |
