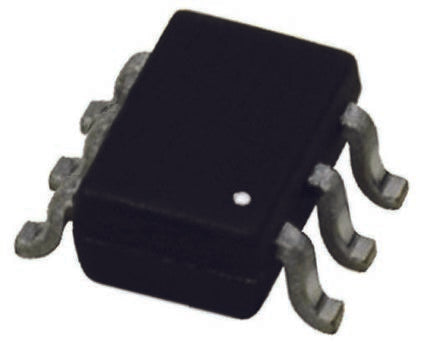

Diodes Inc 80V 500mA, Quad Diode, 6-Pin SOT-363 MMBD4448HADW-7-F [MMBD4448HADW-7-F]; 122-0025
by DiodesZetex
0₫
Mã kho: 1220025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOT-363 (SC-88) |
| Maximum Continuous Forward Current | 500mA |
| Peak Reverse Repetitive Voltage | 80V |
| Diode Configuration | 2x Common Anode Pair |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 6 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 4 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 4ns |
| Peak Non-Repetitive Forward Surge Current | 4A |
