Panduit Wire Routing, Management & Protection, [ST17-075-66BU]; PAI409
Panduit Wire Routing, Management & Protection, [ST17-075-66BU]; PAI409
Regular price
35.560 VND
Regular price
Sale price
35.560 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com

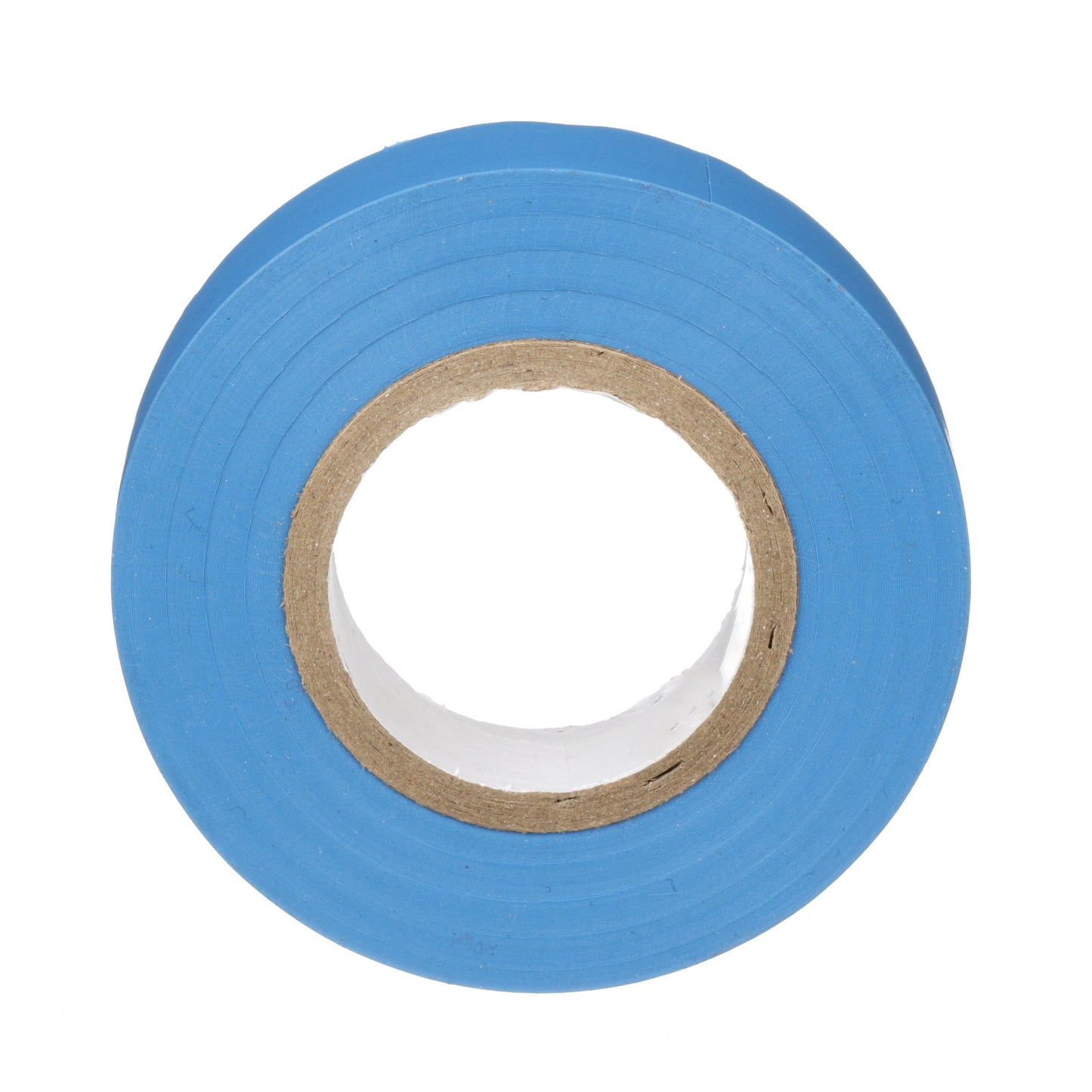

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST17-075-66BU
MÔ TẢ SẢN PHẨM
StrongHold ST17-075-66BU General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .007” in size. I
_THÔNG SỐ KỸ THUẬT:
| Sub Brand | StrongHold™ |
| Product Type | General Purpose |
| Color | Blue |
| Material | Polyvinyl Chloride (PVC) |
| Overall Thickness (In.) | 0.007 |
| Overall Thickness (mm) | 0.18 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.05 |
| Overall Length (ft.) | 66 |
| Overall Length (m) | 20.12 |
| Tensile Strength (N/cm) | 24.72 |
| Tensile Strength (kg/mm) | 0.252 |
| Elongation at Break (%) | 200 |
| Adhesion to Steel (N/cm) | 1.97 |
| Adhesion to Steel (oz/in) | 18 |
| Adhesion to Backing (N/cm) | 1.97 |
| Adhesion to Backing (oz/in) | 18 |
| Flammability Rating | UL 510 Flame Retardant |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Dielectric Breakdown Voltage (V) | 7 |
| Standards Met | Meets UL 510 CAS C 22.2 No 197; Meets RoHS 2002/95/EC directives |
| Compliance Certifications | UL Listed/CSA Certified |
| Environment | Indoor/Outdoor |
| Application | Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair |
| Durability (yr) | 5 |
| Tape Style | General Purpose |
| Adhesive Backing Material | Rubber |
