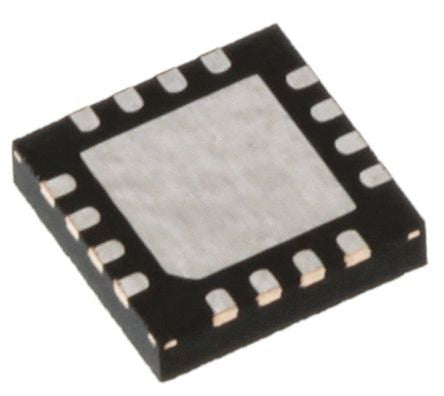

Texas Instruments TPS65233-1RTET, Boost Converter DC-DC Converter, Adjustable, 18.2 → 19 V 16-Pin, WQFN [TPS65233-1RTET]; 133-0765
0₫
Mã kho: 1330765
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Output Voltage | 18.2 V |
| Maximum Output Voltage | 19 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 20 V |
| Converter Type | Boost Converter |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Package Type | WQFN |
| Pin Count | 16 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 1 MHz |
| Load Regulation | 0.7 %A |
| Switching Regulator | Yes |
| Line Regulation | 0.2 %/V |
| Length | 3.15mm |
| Dimensions | 3.15 x 3.15 x 0.75mm |
| Height | 0.75mm |
| Width | 3.15mm |
