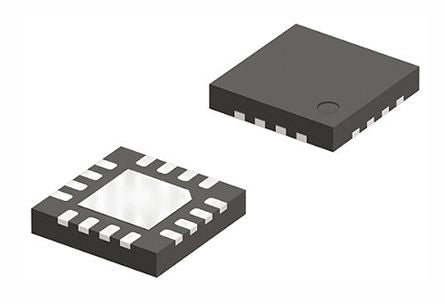

Texas Instruments TPS55010RTET, Dual Isolated DC-DC Converter, Adjustable 16-Pin, WQFN [TPS55010RTET]; 162-6460
0₫
Mã kho: 1626460
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Output Voltage | -20 V, 5 V |
| Maximum Output Voltage | -5 V, 20 V |
| Minimum Input Voltage | 2.95 V |
| Maximum Input Voltage | 6 V |
| Maximum Output Current | 100mA |
| Converter Type | Flyback, Step Down |
| Number of Outputs | 2 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Package Type | WQFN |
| Pin Count | 16 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 3.15mm |
| Height | 0.75mm |
| Maximum Switching Frequency | 2 MHz |
| Width | 3.15mm |
| Dimensions | 3.15 x 3.15 x 0.75mm |
| Switching Regulator | Yes |
