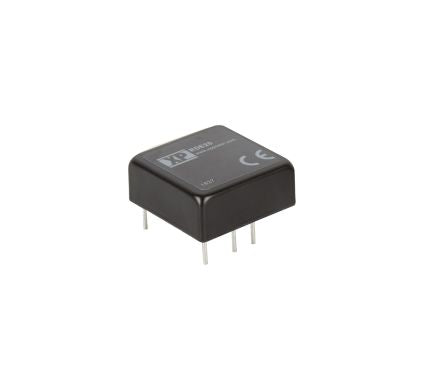

XP Power RDE20 20W Isolated DC-DC Converter Through Hole, Voltage in 42 → 176 V dc, Voltage out ±15V dc Railway [RDE20110D15]; 186-2867
by XP Power
0₫
Mã kho: 1862867
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 42 → 176 V dc |
| Input Voltage Nominal | 72 → 110 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 20W |
| Output Current | ±666mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.87 |
| Railway Approved | Yes |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Width | 25.4mm |
| Series | RDE20 |
| Depth | 10.41mm |
| Length | 25.4mm |
