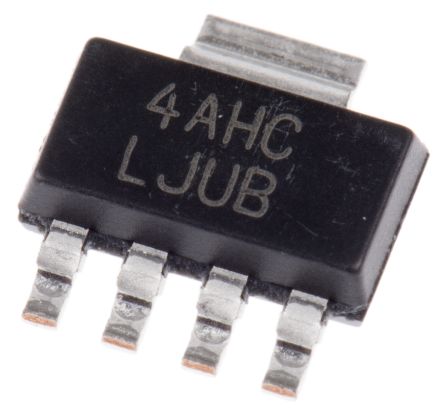

Texas Instruments LP38693MP-ADJ/NOPB, LDO Regulator, 500mA Adjustable, 1.25 → 9 V, ±2% 5+Tab-Pin, SOT-223 [LP38693MP-ADJ/NOPB]; 537-9222
0₫
Mã kho: 5379222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.25 → 9 V |
| Output Type | Adjustable |
| Package Type | SOT-223 |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 10 V |
| Pin Count | 5+Tab |
| Polarity | Positive |
| Number of Outputs | 1 |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.6mm |
| Load Regulation | 1.8 %/A |
| Dimensions | 6.5 x 3.56 x 1.6mm |
| Length | 6.5mm |
| Width | 3.56mm |
| Line Regulation | 0.03 %/V |
| Enable | Yes |
