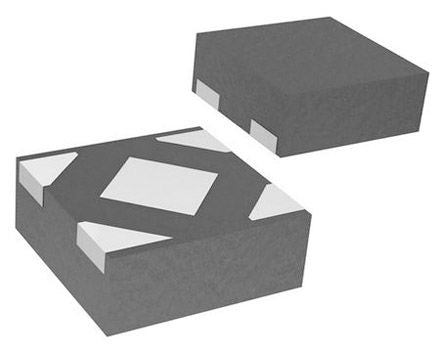

ON Semiconductor NCV8177BMX180TCG Linear Voltage Regulator, 500mA, Adjustable, 1.8 V, ±0.8% 4-Pin, XDFN [NCV8177BMX180TCG]; 145-3563
0₫
Mã kho: 1453563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.8 V |
| Maximum Output Current | 500mA |
| Package Type | XDFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.6 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | ±0.8% |
| Quiescent Current | 0.06mA |
| Dropout Voltage Measurement Current | 500 mA |
| Line Regulation | 0.15 %/V |
| Length | 1mm |
| Typical Dropout Voltage @ Current | 200 mV @ 500 mA |
| Load Regulation | 10 mV |
| Dimensions | 1 x 1 x 0.38mm |
| Height | 0.38mm |
| Width | 1mm |
| Series | NCV8 |
