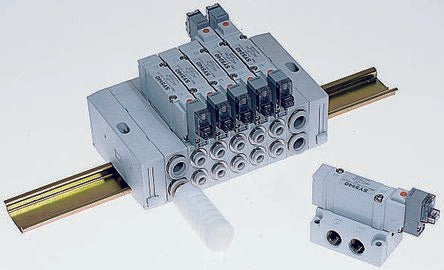

SMC 5/2 Pneumatic Control Valve Solenoid/Pilot SY3000 Series [SY3240-5LOU-Q]; 494-3226
by SMC
0₫
Mã kho: 4943226
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SY3000 |
| Mounting Style | Manifold |
| Function | 43953 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Zinc |
| Maximum Flow Rate | 294.5NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.4W |
| Minimum Operating Pressure | 0.1MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Standard | Rc |
| Number of Ports | 43953 |
