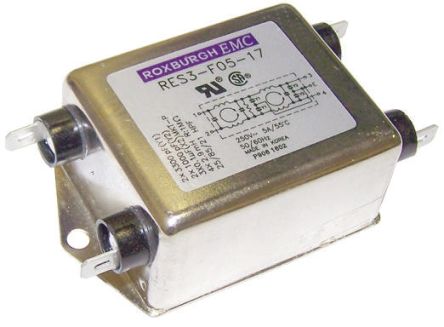

Roxburgh EMC RES3 Series 5A 250 V ac/dc Chassis Mount RFI Filter, with Tab Terminals [RES3F05]; 672-7045
by Roxburgh EMC
0₫
Mã kho: 6727045
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 5A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Stages | Two Stage |
| Series | RES3 |
| Length | 63.5mm |
| Depth | 51.8mm |
| Height | 32mm |
| Dimensions | 63.5 x 51.8 x 32mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.7 mA |
| Maximum Operating Temperature | +85°C |
| Standards Met | EN 60950, UL 1283 |
