Panduit Wire Routing, Management & Protection, [IMS9.5T35-QR6L]; PAH887
Panduit Wire Routing, Management & Protection, [IMS9.5T35-QR6L]; PAH887
Regular price
1.453.200 VND
Regular price
Sale price
1.453.200 VND
Quantity
Hoặc gửi email trực tiếp: SKF@nguyenxuong.com
Contractor Products / Stainless Steel / Custom Strapping: Panduit IMS9.5T35-QR6L
MÔ TẢ SẢN PHẨM

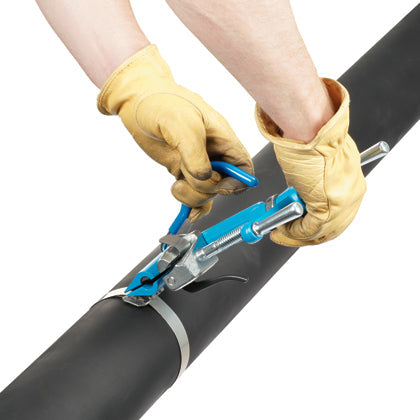

Panduit® Pan-Steel® StrongHold™ Custom Strapping can be cut to meet your many project needs. Built with 316L stainless steel with a fold-over lock, it maintains a safe, secure connection despite severe weather, intense UV rays, high vibration and galvanic corrosion. Perfect for some of the most chal
_THÔNG SỐ KỸ THUẬT:
| Application | Corrosive Environment |
| Product Type | Custom Length Stainless Steel Strapping |
| Color | Natural |
| Environment | Indoor and Outdoor |
| Finish/Coating | NA |
| For Use With | BT75SDT |
| Material | 316 Stainless Steel |
| Maximum Installation Temperature (°C) | 538 |
| Maximum Installation Temperature (°F) | 1000 |
| Minimum Installation Temperature (°C) | -80 |
| Minimum Installation Temperature (°F) | -112 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 1780 |
| Minimum Loop Tensile Strength (lb) | 400.15 |
| Overall Length (In.) | 984.24 |
| Overall Length (mm) | 25000 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.5 |
| Resistance Properties | UV-Resistant |
| Standards Met | RoHS Compliant |
| Sub Brand | StrongHold™ |
| Strap Breaking Strength (N) | 1780 |
| Strap Breaking Strength (lb) | 400.15 |
| Minimum Bundle Width (In.) | 1.02 |
| Minimum Bundle Width (mm) | 26 |
| Overall Thickness (In.) | 0.01 |
| Overall Thickness (mm) | 0.4 |
| Part Features | Fold over design provides high-retained tension in mechanical fastening and cable bundling applications; After tensioning, cut end is locked inside low profile buckle – no sharp edges; For applications that require various bundle diameters; Supplied in reels of 100 ft (30.5 m); Uncoated; Provides job site versatility with minimum inventory; Packaging speeds removal of steel and includes bundle diameter cut off guide. |
