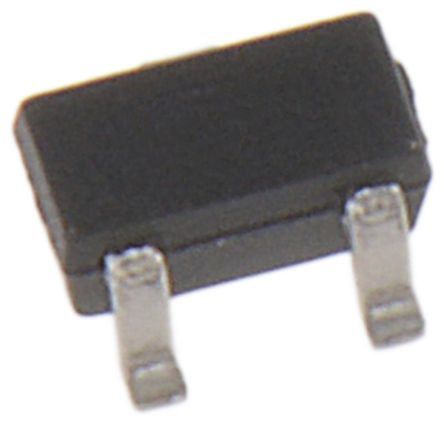

NTE4153NT1G N-Channel MOSFET, 915 mA, 20 V, 3-Pin SC-89 ON Semiconductor [NTE4153NT1G]; 184-1203
0₫
Mã kho: 1841203
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 915 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SC-89 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 950 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Minimum Gate Threshold Voltage | 0.45V |
| Maximum Power Dissipation | 300 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±6 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 0.95mm |
| Automotive Standard | AEC-Q101 |
| Height | 0.8mm |
| Forward Diode Voltage | 1.1V |
| Typical Gate Charge @ Vgs | 1.82 nC @ 4.5 V |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
