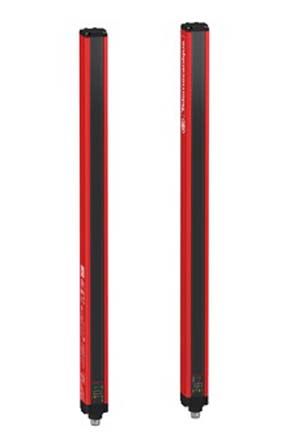

XUSL2E Light Curtain Receiver, Transmitter, 38 Beams, 30mm Resolution [XUSL2E30H076N]; 127-8313
0₫
Mã kho: 1278313
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XUSL2E |
| Beam Resolution | 30mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 2 |
| SIL IEC 61508 | 1 |
| PL EN ISO 13849-1 | C |
| Number of Beams | 38 |
| Protective Height | 760mm |
| Minimum Scanning Distance | 0m |
| Maximum Scanning Distance | 4 m, 12 m |
| Maximum Response Time | 11 ms |
| Supply Voltage | 24 V dc |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) |
| Width | 29.4mm |
| Length | 31mm |
| Dimensions | 31 x 29.4 x 813 mm |
| Application | Hand |
| Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
| Height | 813mm |
