Panduit Split bolt, copper, type SBC, #6 STR - #2 STR AWG. [SBC2-C]; PAO753

Name: Panduit Split bolt, copper, type SBC, #6 STR - #2 STR AWG. [SBC2-C]; PAO753
Brand: Panduit
SKU: PAO753
Price: 233400.0 VND
Availability: InStock

by Panduit

233.400₫

(Giá chưa VAT).

Mã kho: PAO753

Mã nhà sản xuất: SBC2-C

Đơn vị tính: KT

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Split Bolts: Panduit SBC2-C

MÔ TẢ SẢN PHẨM

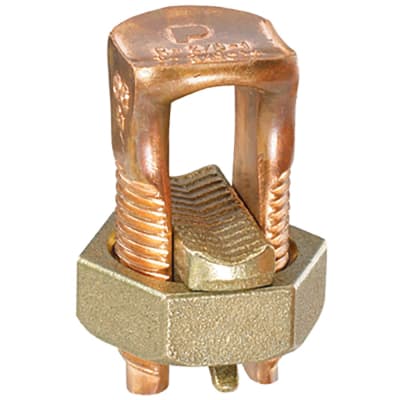

The SBC2-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of con

_THÔNG SỐ KỸ THUẬT:

Product Type	Mechanical Connectors - Split Bolt
Connection Type	Copper to Copper
Base Material	Copper
Minimum Copper Conductor Size (AWG SOL)	6
Maximum Copper Conductor Size (AWG STR)	2
Standards Met	UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Overall Height (In.)	1.23
Overall Height (mm)	31.24
Sub Brand	Pan-Lug™
Part Features	high strength copper for corrosion resistance,extra long body,range taking,true hex design for correct fit
