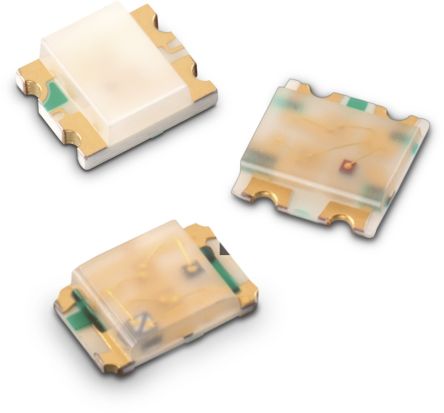

Wurth Elektronik 150066M153000, WL-SFCD 470 (Blue) nm, 525 (Green) nm, 624 (Red) nm 3 RGB LED, 4-Pin 0606 Diffused [150066M153000]; 176-6050
0₫
Mã kho: 1766050
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | RGB |
| Package Type | 1616 (0606) |
| Mounting Type | Surface Mount |
| Number of LEDs | 3 |
| Forward Voltage | 2.4 V |
| Luminous Intensity | 180 (Blue) mcd, 285 (Red) mcd, 900 (Green) mcd |
| Number of Pins | 4 |
| Viewing Angle | 120 ° |
| Lens Shape | Rectangle |
| Dominant Wavelength | 470 (Blue) nm, 525 (Green) nm, 624 (Red) nm |
| Dimensions | 1.6 x 1.6 x 0.4mm |
| Lens Finish | Diffused |
| Lens Colour | Clear |
| Forward Current | 40mA |
| Series | WL-SFCD |
